Time

IMG_0121

DriP-Final

DriP is a reminder that time has a way at eroding even the hardest of materials. A single drop of water falls once a minute onto a marble slab eventually boring a hole through it. The time of the drop can be changed through the code. It might be be interesting to add some kind of timing control to circuit, allowing the user to set the interval.

byte directionPin = 9;
byte stepPin = 8;
int numberOfSteps = 500;
byte ledPin = 13;
int pulseWidthMicros = 20;  // microseconds
int millisbetweenSteps = 1; // milliseconds - or try 1000 for slower steps

unsigned long startMillis;
unsigned long currentMillis;
const unsigned long period = 60000;

void setup() {
  pinMode(directionPin, OUTPUT);
  pinMode(stepPin, OUTPUT);
  pinMode(ledPin, OUTPUT);
  digitalWrite(directionPin, HIGH);
  Serial.begin(9600);
  Serial.println("Starting StepperTest");
  digitalWrite(ledPin, LOW);

  //  delay(1);
  startMillis = millis();

}


void loop() {
  currentMillis = millis();
  if (currentMillis - startMillis > period)
    //    digitalWrite(directionPin, HIGH);
  {
    for (int n = 0; n < numberOfSteps; n++) {
      digitalWrite(stepPin, HIGH);
      //    delayMicroseconds(pulseWidthMicros); // this line is probably unnecessary
      digitalWrite(stepPin, LOW);

      delay(millisbetweenSteps);

      digitalWrite(ledPin, !digitalRead(ledPin));
      startMillis = currentMillis;
    }
  }
  delay(1);

}



Schematic diagram of the circuit.
Schematic diagram of the circuit.
Mold box parts cut on the 3-axis CNC.
Mold box parts cut on the 3-axis CNC.
Cutting the wooden top for DriP.
Cutting the wooden top for DriP.
Inner and outer components of the mold box.
Inner and outer components of the mold box.
Assembled mold box.
Assembled mold box.
Mold box after pouring the concrete.
Mold box after pouring the concrete.
Top down of view.
Top down of view.
Concrete and wood parts mocked-up.
Concrete and wood parts mocked-up.
Pump tubes inserted through concrete base.
Pump tubes inserted through concrete base.
Completed circuit on breadboard and on a protoboard.
Completed circuit on breadboard and on a protoboard.
DriP.
DriP.
DriP.
DriP.
DriP.
DriP.
Drip.29

DriP

DriP is a sculptural representation of how time wears away at even the hardest things.

DriP is constructed with concrete, mahogany, brass, and marble. Hidden beneath the marble is a reservoir filled with water and a submersible pump. Very slowly at the rate of one milliliter per minute water is pumped through the brass tube and dropped on to the center of the marble pate. The slow erosion of the marble by the water is a metaphor for the way time wears at everything, eventually reducing even the hardest of materials to nothing.

DriP
DriP
DriP
DriP
SketchTitles-04

Sketch4

In class there have been many discussions involving time and music, for this sketch I used an Arduino Uno, 3 LEDs, and Processing to create a visual time stamp for two different songs. The first is Dopesmoker by Sleep, this song is 1:09:00 minutes long and is very slow and dronie. The second is Gimmie Gimmie Gimmie by Black Flack, lasts all of 00:01:24, and has a  very fast tempo. The time of the different songs can easily be seen with the illumination of the LEDs.

Circuit for the LEDs and the Arduino Uno.
Circuit for the LEDs and the Arduino Uno.

The Arduino code is an example sketch StandardFirmata, which is a common transfer protocol.

PROCE/*
  Firmata is a generic protocol for communicating with microcontrollers
  from software on a host computer. It is intended to work with
  any host computer software package.

  To download a host software package, please click on the following link
  to open the list of Firmata client libraries in your default browser.

  https://github.com/firmata/arduino#firmata-client-libraries

  Copyright (C) 2006-2008 Hans-Christoph Steiner.  All rights reserved.
  Copyright (C) 2010-2011 Paul Stoffregen.  All rights reserved.
  Copyright (C) 2009 Shigeru Kobayashi.  All rights reserved.
  Copyright (C) 2009-2016 Jeff Hoefs.  All rights reserved.

  This library is free software; you can redistribute it and/or
  modify it under the terms of the GNU Lesser General Public
  License as published by the Free Software Foundation; either
  version 2.1 of the License, or (at your option) any later version.

  See file LICENSE.txt for further informations on licensing terms.

  Last updated August 17th, 2017
*/

#include <Servo.h>
#include <Wire.h>
#include <Firmata.h>

#define I2C_WRITE                   B00000000
#define I2C_READ                    B00001000
#define I2C_READ_CONTINUOUSLY       B00010000
#define I2C_STOP_READING            B00011000
#define I2C_READ_WRITE_MODE_MASK    B00011000
#define I2C_10BIT_ADDRESS_MODE_MASK B00100000
#define I2C_END_TX_MASK             B01000000
#define I2C_STOP_TX                 1
#define I2C_RESTART_TX              0
#define I2C_MAX_QUERIES             8
#define I2C_REGISTER_NOT_SPECIFIED  -1

// the minimum interval for sampling analog input
#define MINIMUM_SAMPLING_INTERVAL   1


/*==============================================================================
 * GLOBAL VARIABLES
 *============================================================================*/

#ifdef FIRMATA_SERIAL_FEATURE
SerialFirmata serialFeature;
#endif

/* analog inputs */
int analogInputsToReport = 0; // bitwise array to store pin reporting

/* digital input ports */
byte reportPINs[TOTAL_PORTS];       // 1 = report this port, 0 = silence
byte previousPINs[TOTAL_PORTS];     // previous 8 bits sent

/* pins configuration */
byte portConfigInputs[TOTAL_PORTS]; // each bit: 1 = pin in INPUT, 0 = anything else

/* timer variables */
unsigned long currentMillis;        // store the current value from millis()
unsigned long previousMillis;       // for comparison with currentMillis
unsigned int samplingInterval = 19; // how often to run the main loop (in ms)

/* i2c data */
struct i2c_device_info {
  byte addr;
  int reg;
  byte bytes;
  byte stopTX;
};

/* for i2c read continuous more */
i2c_device_info query[I2C_MAX_QUERIES];

byte i2cRxData[64];
boolean isI2CEnabled = false;
signed char queryIndex = -1;
// default delay time between i2c read request and Wire.requestFrom()
unsigned int i2cReadDelayTime = 0;

Servo servos[MAX_SERVOS];
byte servoPinMap[TOTAL_PINS];
byte detachedServos[MAX_SERVOS];
byte detachedServoCount = 0;
byte servoCount = 0;

boolean isResetting = false;

// Forward declare a few functions to avoid compiler errors with older versions
// of the Arduino IDE.
void setPinModeCallback(byte, int);
void reportAnalogCallback(byte analogPin, int value);
void sysexCallback(byte, byte, byte*);

/* utility functions */
void wireWrite(byte data)
{
#if ARDUINO >= 100
  Wire.write((byte)data);
#else
  Wire.send(data);
#endif
}

byte wireRead(void)
{
#if ARDUINO >= 100
  return Wire.read();
#else
  return Wire.receive();
#endif
}

/*==============================================================================
 * FUNCTIONS
 *============================================================================*/

void attachServo(byte pin, int minPulse, int maxPulse)
{
  if (servoCount < MAX_SERVOS) {
    // reuse indexes of detached servos until all have been reallocated
    if (detachedServoCount > 0) {
      servoPinMap[pin] = detachedServos[detachedServoCount - 1];
      if (detachedServoCount > 0) detachedServoCount--;
    } else {
      servoPinMap[pin] = servoCount;
      servoCount++;
    }
    if (minPulse > 0 && maxPulse > 0) {
      servos[servoPinMap[pin]].attach(PIN_TO_DIGITAL(pin), minPulse, maxPulse);
    } else {
      servos[servoPinMap[pin]].attach(PIN_TO_DIGITAL(pin));
    }
  } else {
    Firmata.sendString("Max servos attached");
  }
}

void detachServo(byte pin)
{
  servos[servoPinMap[pin]].detach();
  // if we're detaching the last servo, decrement the count
  // otherwise store the index of the detached servo
  if (servoPinMap[pin] == servoCount && servoCount > 0) {
    servoCount--;
  } else if (servoCount > 0) {
    // keep track of detached servos because we want to reuse their indexes
    // before incrementing the count of attached servos
    detachedServoCount++;
    detachedServos[detachedServoCount - 1] = servoPinMap[pin];
  }

  servoPinMap[pin] = 255;
}

void enableI2CPins()
{
  byte i;
  // is there a faster way to do this? would probaby require importing
  // Arduino.h to get SCL and SDA pins
  for (i = 0; i < TOTAL_PINS; i++) {
    if (IS_PIN_I2C(i)) {
      // mark pins as i2c so they are ignore in non i2c data requests
      setPinModeCallback(i, PIN_MODE_I2C);
    }
  }

  isI2CEnabled = true;

  Wire.begin();
}

/* disable the i2c pins so they can be used for other functions */
void disableI2CPins() {
  isI2CEnabled = false;
  // disable read continuous mode for all devices
  queryIndex = -1;
}

void readAndReportData(byte address, int theRegister, byte numBytes, byte stopTX) {
  // allow I2C requests that don't require a register read
  // for example, some devices using an interrupt pin to signify new data available
  // do not always require the register read so upon interrupt you call Wire.requestFrom()
  if (theRegister != I2C_REGISTER_NOT_SPECIFIED) {
    Wire.beginTransmission(address);
    wireWrite((byte)theRegister);
    Wire.endTransmission(stopTX); // default = true
    // do not set a value of 0
    if (i2cReadDelayTime > 0) {
      // delay is necessary for some devices such as WiiNunchuck
      delayMicroseconds(i2cReadDelayTime);
    }
  } else {
    theRegister = 0;  // fill the register with a dummy value
  }

  Wire.requestFrom(address, numBytes);  // all bytes are returned in requestFrom

  // check to be sure correct number of bytes were returned by slave
  if (numBytes < Wire.available()) {
    Firmata.sendString("I2C: Too many bytes received");
  } else if (numBytes > Wire.available()) {
    Firmata.sendString("I2C: Too few bytes received");
  }

  i2cRxData[0] = address;
  i2cRxData[1] = theRegister;

  for (int i = 0; i < numBytes && Wire.available(); i++) {
    i2cRxData[2 + i] = wireRead();
  }

  // send slave address, register and received bytes
  Firmata.sendSysex(SYSEX_I2C_REPLY, numBytes + 2, i2cRxData);
}

void outputPort(byte portNumber, byte portValue, byte forceSend)
{
  // pins not configured as INPUT are cleared to zeros
  portValue = portValue & portConfigInputs[portNumber];
  // only send if the value is different than previously sent
  if (forceSend || previousPINs[portNumber] != portValue) {
    Firmata.sendDigitalPort(portNumber, portValue);
    previousPINs[portNumber] = portValue;
  }
}

/* -----------------------------------------------------------------------------
 * check all the active digital inputs for change of state, then add any events
 * to the Serial output queue using Serial.print() */
void checkDigitalInputs(void)
{
  /* Using non-looping code allows constants to be given to readPort().
   * The compiler will apply substantial optimizations if the inputs
   * to readPort() are compile-time constants. */
  if (TOTAL_PORTS > 0 && reportPINs[0]) outputPort(0, readPort(0, portConfigInputs[0]), false);
  if (TOTAL_PORTS > 1 && reportPINs[1]) outputPort(1, readPort(1, portConfigInputs[1]), false);
  if (TOTAL_PORTS > 2 && reportPINs[2]) outputPort(2, readPort(2, portConfigInputs[2]), false);
  if (TOTAL_PORTS > 3 && reportPINs[3]) outputPort(3, readPort(3, portConfigInputs[3]), false);
  if (TOTAL_PORTS > 4 && reportPINs[4]) outputPort(4, readPort(4, portConfigInputs[4]), false);
  if (TOTAL_PORTS > 5 && reportPINs[5]) outputPort(5, readPort(5, portConfigInputs[5]), false);
  if (TOTAL_PORTS > 6 && reportPINs[6]) outputPort(6, readPort(6, portConfigInputs[6]), false);
  if (TOTAL_PORTS > 7 && reportPINs[7]) outputPort(7, readPort(7, portConfigInputs[7]), false);
  if (TOTAL_PORTS > 8 && reportPINs[8]) outputPort(8, readPort(8, portConfigInputs[8]), false);
  if (TOTAL_PORTS > 9 && reportPINs[9]) outputPort(9, readPort(9, portConfigInputs[9]), false);
  if (TOTAL_PORTS > 10 && reportPINs[10]) outputPort(10, readPort(10, portConfigInputs[10]), false);
  if (TOTAL_PORTS > 11 && reportPINs[11]) outputPort(11, readPort(11, portConfigInputs[11]), false);
  if (TOTAL_PORTS > 12 && reportPINs[12]) outputPort(12, readPort(12, portConfigInputs[12]), false);
  if (TOTAL_PORTS > 13 && reportPINs[13]) outputPort(13, readPort(13, portConfigInputs[13]), false);
  if (TOTAL_PORTS > 14 && reportPINs[14]) outputPort(14, readPort(14, portConfigInputs[14]), false);
  if (TOTAL_PORTS > 15 && reportPINs[15]) outputPort(15, readPort(15, portConfigInputs[15]), false);
}

// -----------------------------------------------------------------------------
/* sets the pin mode to the correct state and sets the relevant bits in the
 * two bit-arrays that track Digital I/O and PWM status
 */
void setPinModeCallback(byte pin, int mode)
{
  if (Firmata.getPinMode(pin) == PIN_MODE_IGNORE)
    return;

  if (Firmata.getPinMode(pin) == PIN_MODE_I2C && isI2CEnabled && mode != PIN_MODE_I2C) {
    // disable i2c so pins can be used for other functions
    // the following if statements should reconfigure the pins properly
    disableI2CPins();
  }
  if (IS_PIN_DIGITAL(pin) && mode != PIN_MODE_SERVO) {
    if (servoPinMap[pin] < MAX_SERVOS && servos[servoPinMap[pin]].attached()) {
      detachServo(pin);
    }
  }
  if (IS_PIN_ANALOG(pin)) {
    reportAnalogCallback(PIN_TO_ANALOG(pin), mode == PIN_MODE_ANALOG ? 1 : 0); // turn on/off reporting
  }
  if (IS_PIN_DIGITAL(pin)) {
    if (mode == INPUT || mode == PIN_MODE_PULLUP) {
      portConfigInputs[pin / 8] |= (1 << (pin & 7));
    } else {
      portConfigInputs[pin / 8] &= ~(1 << (pin & 7));
    }
  }
  Firmata.setPinState(pin, 0);
  switch (mode) {
    case PIN_MODE_ANALOG:
      if (IS_PIN_ANALOG(pin)) {
        if (IS_PIN_DIGITAL(pin)) {
          pinMode(PIN_TO_DIGITAL(pin), INPUT);    // disable output driver
#if ARDUINO <= 100
          // deprecated since Arduino 1.0.1 - TODO: drop support in Firmata 2.6
          digitalWrite(PIN_TO_DIGITAL(pin), LOW); // disable internal pull-ups
#endif
        }
        Firmata.setPinMode(pin, PIN_MODE_ANALOG);
      }
      break;
    case INPUT:
      if (IS_PIN_DIGITAL(pin)) {
        pinMode(PIN_TO_DIGITAL(pin), INPUT);    // disable output driver
#if ARDUINO <= 100
        // deprecated since Arduino 1.0.1 - TODO: drop support in Firmata 2.6
        digitalWrite(PIN_TO_DIGITAL(pin), LOW); // disable internal pull-ups
#endif
        Firmata.setPinMode(pin, INPUT);
      }
      break;
    case PIN_MODE_PULLUP:
      if (IS_PIN_DIGITAL(pin)) {
        pinMode(PIN_TO_DIGITAL(pin), INPUT_PULLUP);
        Firmata.setPinMode(pin, PIN_MODE_PULLUP);
        Firmata.setPinState(pin, 1);
      }
      break;
    case OUTPUT:
      if (IS_PIN_DIGITAL(pin)) {
        if (Firmata.getPinMode(pin) == PIN_MODE_PWM) {
          // Disable PWM if pin mode was previously set to PWM.
          digitalWrite(PIN_TO_DIGITAL(pin), LOW);
        }
        pinMode(PIN_TO_DIGITAL(pin), OUTPUT);
        Firmata.setPinMode(pin, OUTPUT);
      }
      break;
    case PIN_MODE_PWM:
      if (IS_PIN_PWM(pin)) {
        pinMode(PIN_TO_PWM(pin), OUTPUT);
        analogWrite(PIN_TO_PWM(pin), 0);
        Firmata.setPinMode(pin, PIN_MODE_PWM);
      }
      break;
    case PIN_MODE_SERVO:
      if (IS_PIN_DIGITAL(pin)) {
        Firmata.setPinMode(pin, PIN_MODE_SERVO);
        if (servoPinMap[pin] == 255 || !servos[servoPinMap[pin]].attached()) {
          // pass -1 for min and max pulse values to use default values set
          // by Servo library
          attachServo(pin, -1, -1);
        }
      }
      break;
    case PIN_MODE_I2C:
      if (IS_PIN_I2C(pin)) {
        // mark the pin as i2c
        // the user must call I2C_CONFIG to enable I2C for a device
        Firmata.setPinMode(pin, PIN_MODE_I2C);
      }
      break;
    case PIN_MODE_SERIAL:
#ifdef FIRMATA_SERIAL_FEATURE
      serialFeature.handlePinMode(pin, PIN_MODE_SERIAL);
#endif
      break;
    default:
      Firmata.sendString("Unknown pin mode"); // TODO: put error msgs in EEPROM
  }
  // TODO: save status to EEPROM here, if changed
}

/*
 * Sets the value of an individual pin. Useful if you want to set a pin value but
 * are not tracking the digital port state.
 * Can only be used on pins configured as OUTPUT.
 * Cannot be used to enable pull-ups on Digital INPUT pins.
 */
void setPinValueCallback(byte pin, int value)
{
  if (pin < TOTAL_PINS && IS_PIN_DIGITAL(pin)) {
    if (Firmata.getPinMode(pin) == OUTPUT) {
      Firmata.setPinState(pin, value);
      digitalWrite(PIN_TO_DIGITAL(pin), value);
    }
  }
}

void analogWriteCallback(byte pin, int value)
{
  if (pin < TOTAL_PINS) {
    switch (Firmata.getPinMode(pin)) {
      case PIN_MODE_SERVO:
        if (IS_PIN_DIGITAL(pin))
          servos[servoPinMap[pin]].write(value);
        Firmata.setPinState(pin, value);
        break;
      case PIN_MODE_PWM:
        if (IS_PIN_PWM(pin))
          analogWrite(PIN_TO_PWM(pin), value);
        Firmata.setPinState(pin, value);
        break;
    }
  }
}

void digitalWriteCallback(byte port, int value)
{
  byte pin, lastPin, pinValue, mask = 1, pinWriteMask = 0;

  if (port < TOTAL_PORTS) {
    // create a mask of the pins on this port that are writable.
    lastPin = port * 8 + 8;
    if (lastPin > TOTAL_PINS) lastPin = TOTAL_PINS;
    for (pin = port * 8; pin < lastPin; pin++) {
      // do not disturb non-digital pins (eg, Rx & Tx)
      if (IS_PIN_DIGITAL(pin)) {
        // do not touch pins in PWM, ANALOG, SERVO or other modes
        if (Firmata.getPinMode(pin) == OUTPUT || Firmata.getPinMode(pin) == INPUT) {
          pinValue = ((byte)value & mask) ? 1 : 0;
          if (Firmata.getPinMode(pin) == OUTPUT) {
            pinWriteMask |= mask;
          } else if (Firmata.getPinMode(pin) == INPUT && pinValue == 1 && Firmata.getPinState(pin) != 1) {
            // only handle INPUT here for backwards compatibility
#if ARDUINO > 100
            pinMode(pin, INPUT_PULLUP);
#else
            // only write to the INPUT pin to enable pullups if Arduino v1.0.0 or earlier
            pinWriteMask |= mask;
#endif
          }
          Firmata.setPinState(pin, pinValue);
        }
      }
      mask = mask << 1;
    }
    writePort(port, (byte)value, pinWriteMask);
  }
}


// -----------------------------------------------------------------------------
/* sets bits in a bit array (int) to toggle the reporting of the analogIns
 */
//void FirmataClass::setAnalogPinReporting(byte pin, byte state) {
//}
void reportAnalogCallback(byte analogPin, int value)
{
  if (analogPin < TOTAL_ANALOG_PINS) {
    if (value == 0) {
      analogInputsToReport = analogInputsToReport & ~ (1 << analogPin);
    } else {
      analogInputsToReport = analogInputsToReport | (1 << analogPin);
      // prevent during system reset or all analog pin values will be reported
      // which may report noise for unconnected analog pins
      if (!isResetting) {
        // Send pin value immediately. This is helpful when connected via
        // ethernet, wi-fi or bluetooth so pin states can be known upon
        // reconnecting.
        Firmata.sendAnalog(analogPin, analogRead(analogPin));
      }
    }
  }
  // TODO: save status to EEPROM here, if changed
}

void reportDigitalCallback(byte port, int value)
{
  if (port < TOTAL_PORTS) {
    reportPINs[port] = (byte)value;
    // Send port value immediately. This is helpful when connected via
    // ethernet, wi-fi or bluetooth so pin states can be known upon
    // reconnecting.
    if (value) outputPort(port, readPort(port, portConfigInputs[port]), true);
  }
  // do not disable analog reporting on these 8 pins, to allow some
  // pins used for digital, others analog.  Instead, allow both types
  // of reporting to be enabled, but check if the pin is configured
  // as analog when sampling the analog inputs.  Likewise, while
  // scanning digital pins, portConfigInputs will mask off values from any
  // pins configured as analog
}

/*==============================================================================
 * SYSEX-BASED commands
 *============================================================================*/

void sysexCallback(byte command, byte argc, byte *argv)
{
  byte mode;
  byte stopTX;
  byte slaveAddress;
  byte data;
  int slaveRegister;
  unsigned int delayTime;

  switch (command) {
    case I2C_REQUEST:
      mode = argv[1] & I2C_READ_WRITE_MODE_MASK;
      if (argv[1] & I2C_10BIT_ADDRESS_MODE_MASK) {
        Firmata.sendString("10-bit addressing not supported");
        return;
      }
      else {
        slaveAddress = argv[0];
      }

      // need to invert the logic here since 0 will be default for client
      // libraries that have not updated to add support for restart tx
      if (argv[1] & I2C_END_TX_MASK) {
        stopTX = I2C_RESTART_TX;
      }
      else {
        stopTX = I2C_STOP_TX; // default
      }

      switch (mode) {
        case I2C_WRITE:
          Wire.beginTransmission(slaveAddress);
          for (byte i = 2; i < argc; i += 2) {
            data = argv[i] + (argv[i + 1] << 7);
            wireWrite(data);
          }
          Wire.endTransmission();
          delayMicroseconds(70);
          break;
        case I2C_READ:
          if (argc == 6) {
            // a slave register is specified
            slaveRegister = argv[2] + (argv[3] << 7);
            data = argv[4] + (argv[5] << 7);  // bytes to read
          }
          else {
            // a slave register is NOT specified
            slaveRegister = I2C_REGISTER_NOT_SPECIFIED;
            data = argv[2] + (argv[3] << 7);  // bytes to read
          }
          readAndReportData(slaveAddress, (int)slaveRegister, data, stopTX);
          break;
        case I2C_READ_CONTINUOUSLY:
          if ((queryIndex + 1) >= I2C_MAX_QUERIES) {
            // too many queries, just ignore
            Firmata.sendString("too many queries");
            break;
          }
          if (argc == 6) {
            // a slave register is specified
            slaveRegister = argv[2] + (argv[3] << 7);
            data = argv[4] + (argv[5] << 7);  // bytes to read
          }
          else {
            // a slave register is NOT specified
            slaveRegister = (int)I2C_REGISTER_NOT_SPECIFIED;
            data = argv[2] + (argv[3] << 7);  // bytes to read
          }
          queryIndex++;
          query[queryIndex].addr = slaveAddress;
          query[queryIndex].reg = slaveRegister;
          query[queryIndex].bytes = data;
          query[queryIndex].stopTX = stopTX;
          break;
        case I2C_STOP_READING:
          byte queryIndexToSkip;
          // if read continuous mode is enabled for only 1 i2c device, disable
          // read continuous reporting for that device
          if (queryIndex <= 0) {
            queryIndex = -1;
          } else {
            queryIndexToSkip = 0;
            // if read continuous mode is enabled for multiple devices,
            // determine which device to stop reading and remove it's data from
            // the array, shifiting other array data to fill the space
            for (byte i = 0; i < queryIndex + 1; i++) {
              if (query[i].addr == slaveAddress) {
                queryIndexToSkip = i;
                break;
              }
            }

            for (byte i = queryIndexToSkip; i < queryIndex + 1; i++) {
              if (i < I2C_MAX_QUERIES) {
                query[i].addr = query[i + 1].addr;
                query[i].reg = query[i + 1].reg;
                query[i].bytes = query[i + 1].bytes;
                query[i].stopTX = query[i + 1].stopTX;
              }
            }
            queryIndex--;
          }
          break;
        default:
          break;
      }
      break;
    case I2C_CONFIG:
      delayTime = (argv[0] + (argv[1] << 7));

      if (argc > 1 && delayTime > 0) {
        i2cReadDelayTime = delayTime;
      }

      if (!isI2CEnabled) {
        enableI2CPins();
      }

      break;
    case SERVO_CONFIG:
      if (argc > 4) {
        // these vars are here for clarity, they'll optimized away by the compiler
        byte pin = argv[0];
        int minPulse = argv[1] + (argv[2] << 7);
        int maxPulse = argv[3] + (argv[4] << 7);

        if (IS_PIN_DIGITAL(pin)) {
          if (servoPinMap[pin] < MAX_SERVOS && servos[servoPinMap[pin]].attached()) {
            detachServo(pin);
          }
          attachServo(pin, minPulse, maxPulse);
          setPinModeCallback(pin, PIN_MODE_SERVO);
        }
      }
      break;
    case SAMPLING_INTERVAL:
      if (argc > 1) {
        samplingInterval = argv[0] + (argv[1] << 7);
        if (samplingInterval < MINIMUM_SAMPLING_INTERVAL) {
          samplingInterval = MINIMUM_SAMPLING_INTERVAL;
        }
      } else {
        //Firmata.sendString("Not enough data");
      }
      break;
    case EXTENDED_ANALOG:
      if (argc > 1) {
        int val = argv[1];
        if (argc > 2) val |= (argv[2] << 7);
        if (argc > 3) val |= (argv[3] << 14);
        analogWriteCallback(argv[0], val);
      }
      break;
    case CAPABILITY_QUERY:
      Firmata.write(START_SYSEX);
      Firmata.write(CAPABILITY_RESPONSE);
      for (byte pin = 0; pin < TOTAL_PINS; pin++) {
        if (IS_PIN_DIGITAL(pin)) {
          Firmata.write((byte)INPUT);
          Firmata.write(1);
          Firmata.write((byte)PIN_MODE_PULLUP);
          Firmata.write(1);
          Firmata.write((byte)OUTPUT);
          Firmata.write(1);
        }
        if (IS_PIN_ANALOG(pin)) {
          Firmata.write(PIN_MODE_ANALOG);
          Firmata.write(10); // 10 = 10-bit resolution
        }
        if (IS_PIN_PWM(pin)) {
          Firmata.write(PIN_MODE_PWM);
          Firmata.write(DEFAULT_PWM_RESOLUTION);
        }
        if (IS_PIN_DIGITAL(pin)) {
          Firmata.write(PIN_MODE_SERVO);
          Firmata.write(14);
        }
        if (IS_PIN_I2C(pin)) {
          Firmata.write(PIN_MODE_I2C);
          Firmata.write(1);  // TODO: could assign a number to map to SCL or SDA
        }
#ifdef FIRMATA_SERIAL_FEATURE
        serialFeature.handleCapability(pin);
#endif
        Firmata.write(127);
      }
      Firmata.write(END_SYSEX);
      break;
    case PIN_STATE_QUERY:
      if (argc > 0) {
        byte pin = argv[0];
        Firmata.write(START_SYSEX);
        Firmata.write(PIN_STATE_RESPONSE);
        Firmata.write(pin);
        if (pin < TOTAL_PINS) {
          Firmata.write(Firmata.getPinMode(pin));
          Firmata.write((byte)Firmata.getPinState(pin) & 0x7F);
          if (Firmata.getPinState(pin) & 0xFF80) Firmata.write((byte)(Firmata.getPinState(pin) >> 7) & 0x7F);
          if (Firmata.getPinState(pin) & 0xC000) Firmata.write((byte)(Firmata.getPinState(pin) >> 14) & 0x7F);
        }
        Firmata.write(END_SYSEX);
      }
      break;
    case ANALOG_MAPPING_QUERY:
      Firmata.write(START_SYSEX);
      Firmata.write(ANALOG_MAPPING_RESPONSE);
      for (byte pin = 0; pin < TOTAL_PINS; pin++) {
        Firmata.write(IS_PIN_ANALOG(pin) ? PIN_TO_ANALOG(pin) : 127);
      }
      Firmata.write(END_SYSEX);
      break;

    case SERIAL_MESSAGE:
#ifdef FIRMATA_SERIAL_FEATURE
      serialFeature.handleSysex(command, argc, argv);
#endif
      break;
  }
}

/*==============================================================================
 * SETUP()
 *============================================================================*/

void systemResetCallback()
{
  isResetting = true;

  // initialize a defalt state
  // TODO: option to load config from EEPROM instead of default

#ifdef FIRMATA_SERIAL_FEATURE
  serialFeature.reset();
#endif

  if (isI2CEnabled) {
    disableI2CPins();
  }

  for (byte i = 0; i < TOTAL_PORTS; i++) {
    reportPINs[i] = false;    // by default, reporting off
    portConfigInputs[i] = 0;  // until activated
    previousPINs[i] = 0;
  }

  for (byte i = 0; i < TOTAL_PINS; i++) {
    // pins with analog capability default to analog input
    // otherwise, pins default to digital output
    if (IS_PIN_ANALOG(i)) {
      // turns off pullup, configures everything
      setPinModeCallback(i, PIN_MODE_ANALOG);
    } else if (IS_PIN_DIGITAL(i)) {
      // sets the output to 0, configures portConfigInputs
      setPinModeCallback(i, OUTPUT);
    }

    servoPinMap[i] = 255;
  }
  // by default, do not report any analog inputs
  analogInputsToReport = 0;

  detachedServoCount = 0;
  servoCount = 0;

  /* send digital inputs to set the initial state on the host computer,
   * since once in the loop(), this firmware will only send on change */
  /*
  TODO: this can never execute, since no pins default to digital input
        but it will be needed when/if we support EEPROM stored config
  for (byte i=0; i < TOTAL_PORTS; i++) {
    outputPort(i, readPort(i, portConfigInputs[i]), true);
  }
  */
  isResetting = false;
}

void setup()
{
  Firmata.setFirmwareVersion(FIRMATA_FIRMWARE_MAJOR_VERSION, FIRMATA_FIRMWARE_MINOR_VERSION);

  Firmata.attach(ANALOG_MESSAGE, analogWriteCallback);
  Firmata.attach(DIGITAL_MESSAGE, digitalWriteCallback);
  Firmata.attach(REPORT_ANALOG, reportAnalogCallback);
  Firmata.attach(REPORT_DIGITAL, reportDigitalCallback);
  Firmata.attach(SET_PIN_MODE, setPinModeCallback);
  Firmata.attach(SET_DIGITAL_PIN_VALUE, setPinValueCallback);
  Firmata.attach(START_SYSEX, sysexCallback);
  Firmata.attach(SYSTEM_RESET, systemResetCallback);

  // to use a port other than Serial, such as Serial1 on an Arduino Leonardo or Mega,
  // Call begin(baud) on the alternate serial port and pass it to Firmata to begin like this:
  // Serial1.begin(57600);
  // Firmata.begin(Serial1);
  // However do not do this if you are using SERIAL_MESSAGE

  Firmata.begin(57600);
  while (!Serial) {
    ; // wait for serial port to connect. Needed for ATmega32u4-based boards and Arduino 101
  }

  systemResetCallback();  // reset to default config
}

/*==============================================================================
 * LOOP()
 *============================================================================*/
void loop()
{
  byte pin, analogPin;

  /* DIGITALREAD - as fast as possible, check for changes and output them to the
   * FTDI buffer using Serial.print()  */
  checkDigitalInputs();

  /* STREAMREAD - processing incoming messagse as soon as possible, while still
   * checking digital inputs.  */
  while (Firmata.available())
    Firmata.processInput();

  // TODO - ensure that Stream buffer doesn't go over 60 bytes

  currentMillis = millis();
  if (currentMillis - previousMillis > samplingInterval) {
    previousMillis += samplingInterval;
    /* ANALOGREAD - do all analogReads() at the configured sampling interval */
    for (pin = 0; pin < TOTAL_PINS; pin++) {
      if (IS_PIN_ANALOG(pin) && Firmata.getPinMode(pin) == PIN_MODE_ANALOG) {
        analogPin = PIN_TO_ANALOG(pin);
        if (analogInputsToReport & (1 << analogPin)) {
          Firmata.sendAnalog(analogPin, analogRead(analogPin));
        }
      }
    }
    // report i2c data for all device with read continuous mode enabled
    if (queryIndex > -1) {
      for (byte i = 0; i < queryIndex + 1; i++) {
        readAndReportData(query[i].addr, query[i].reg, query[i].bytes, query[i].stopTX);
      }
    }
  }

#ifdef FIRMATA_SERIAL_FEATURE
  serialFeature.update();
#endif
}

The Processing code was adapted from

https://www.instructables.com/How-to-Make-LEDs-Flash-to-Music-with-an-Arduino/

import processing.serial.*;

/**
  * This sketch demonstrates how to use the BeatDetect object in FREQ_ENERGY mode.<br />
  * You can use <code>isKick</code>, <code>isSnare</code>, </code>isHat</code>, <code>isRange</code>,
  * and <code>isOnset(int)</code> to track whatever kind of beats you are looking to track, they will report
  * true or false based on the state of the analysis. To "tick" the analysis you must call <code>detect</code>
  * with successive buffers of audio. You can do this inside of <code>draw</code>, but you are likely to miss some
  * audio buffers if you do this. The sketch implements an <code>AudioListener</code> called <code>BeatListener</code>
  * so that it can call <code>detect</code> on every buffer of audio processed by the system without repeating a buffer
  * or missing one.
  * <p>
  * This sketch plays an entire song so it may be a little slow to load.
  */

import processing.serial.*;
import ddf.minim.*;
import ddf.minim.analysis.*;
import cc.arduino.*;

Minim minim;
AudioPlayer song;
BeatDetect beat;
BeatListener bl;
Arduino arduino;

int ledPin =  12;    // LED connected to digital pin 12
int ledPin2 =  8;    // LED connected to digital pin 1
int ledPin3 =  2;    // LED connected to digital pin 0

float kickSize, snareSize, hatSize;

void setup() {
  size(512, 200, P3D);
  println(Arduino.list());

  minim = new Minim(this);
  arduino = new Arduino(this, Arduino.list()[2], 57600);

  song = minim.loadFile("Sleep - Dopesmoker - 01 Dopesmoker Pt. 1.mp3", 2048);
  //song = minim.loadFile("Gimme Gimme Gimme 2.mp3", 2048);
  song.play();
  // a beat detection object that is FREQ_ENERGY mode that
  // expects buffers the length of song's buffer size
  // and samples captured at songs's sample rate
  beat = new BeatDetect(song.bufferSize(), song.sampleRate());
  // set the sensitivity to 300 milliseconds
  // After a beat has been detected, the algorithm will wait for 300 milliseconds
  // before allowing another beat to be reported. You can use this to dampen the
  // algorithm if it is giving too many false-positives. The default value is 10,
  // which is essentially no damping. If you try to set the sensitivity to a negative value,
  // an error will be reported and it will be set to 10 instead.
  beat.setSensitivity(1);
  kickSize = snareSize = hatSize = 16;
  // make a new beat listener, so that we won't miss any buffers for the analysis
  bl = new BeatListener(beat, song);
  textFont(createFont("Helvetica", 16));
  textAlign(CENTER);

  arduino.pinMode(ledPin, Arduino.OUTPUT);
  arduino.pinMode(ledPin2, Arduino.OUTPUT);
  arduino.pinMode(ledPin3, Arduino.OUTPUT);
}

void draw() {
  background(0);
  fill(255);
  if(beat.isKick()) {
      arduino.digitalWrite(ledPin, Arduino.HIGH);   // set the LED on
      kickSize = 32;
  }
  if(beat.isSnare()) {
      arduino.digitalWrite(ledPin2, Arduino.HIGH);   // set the LED on
      snareSize = 32;
  }
  if(beat.isHat()) {
      arduino.digitalWrite(ledPin3, Arduino.HIGH);   // set the LED on
      hatSize = 32;
  }
  arduino.digitalWrite(ledPin, Arduino.LOW);    // set the LED off
  arduino.digitalWrite(ledPin2, Arduino.LOW);    // set the LED off
  arduino.digitalWrite(ledPin3, Arduino.LOW);    // set the LED off
  textSize(kickSize);
  text("KICK", width/4, height/2);
  textSize(snareSize);
  text("SNARE", width/2, height/2);
  textSize(hatSize);
  text("HAT", 3*width/4, height/2);
  kickSize = constrain(kickSize * 0.95, 16, 32);
  snareSize = constrain(snareSize * 0.95, 16, 32);
  hatSize = constrain(hatSize * 0.95, 16, 32);
}

void stop() {
  // always close Minim audio classes when you are finished with them
  song.close();
  // always stop Minim before exiting
  minim.stop();
  // this closes the sketch
  super.stop();
}
SketchTitles-03

Sketch3

The above video is a simulation of the sun’s movement on November 2nd, 2021 at exactly 370 Jay ST in NYC, 40.69296038790204, -73.98745325545592. The virtual sundial shows exactly what you would see through a time lapse of a sundial placed on the roof of 370 Jay ST. The center of the dial is pointed at true north in order to cast the correct shadow on the dial thusly indicating the time by the markings found on the face.

PPC_0429

DeathDial Final

Original concept post can be found here: DeathDial – Concept



One could hope for 90 years of life. In life it is easy to forget the small details to focus on the big picture, the flip side of that coin is also true. Details get in the way of seeing the whole. DeathDail is a reminder of both of these ideas. The dial focuses on the constant movement of life towards an end, an end that must be present in all things. The movements of each gear no matter how small represent the details in life, while the centrally mounted bar shows the path a whole life traverses. Taking a full 90 years to move from the start position at zero degrees to the end position at 180 degrees.

In the end the gear ration is approximately 1:950,000,000 from the drive gear to the output shaft.

DeathDail - final form with gear studs and centrally mounted dial.
DeathDail – final form with gear studs and centrally mounted dial.
DeathDial Final
DeathDial Final
DeathDial Final
DeathDial Final
DeathDial Final
DeathDial Final
Notes on the original concept, this is was before I made the decision to expose and focus on the gears. Each individual gear contributes to the overall movement of the dial as a whole.
Notes on the original concept, this is was before I made the decision to expose and focus on the gears. Each individual gear contributes to the overall movement of the dial as a whole.
Ideation on how the gears would be held in place, the "gear ramp". This changes very late in the fabrication process, more on that later.
Ideation on how the gears would be held in place, the “gear ramp”. This changes very late in the fabrication process, more on that later.
calculations for gear studs, the eventual solution to the gear ramp problem.
calculations for gear studs, the eventual solution to the gear ramp problem.
Final gear train, this give the final ratio of approximately 1:950,000,000. this makes the dial move only 180 degrees over the span of 90 years.
Final gear train, this give the final ratio of approximately 1:950,000,000. this makes the dial move only 180 degrees over the span of 90 years.

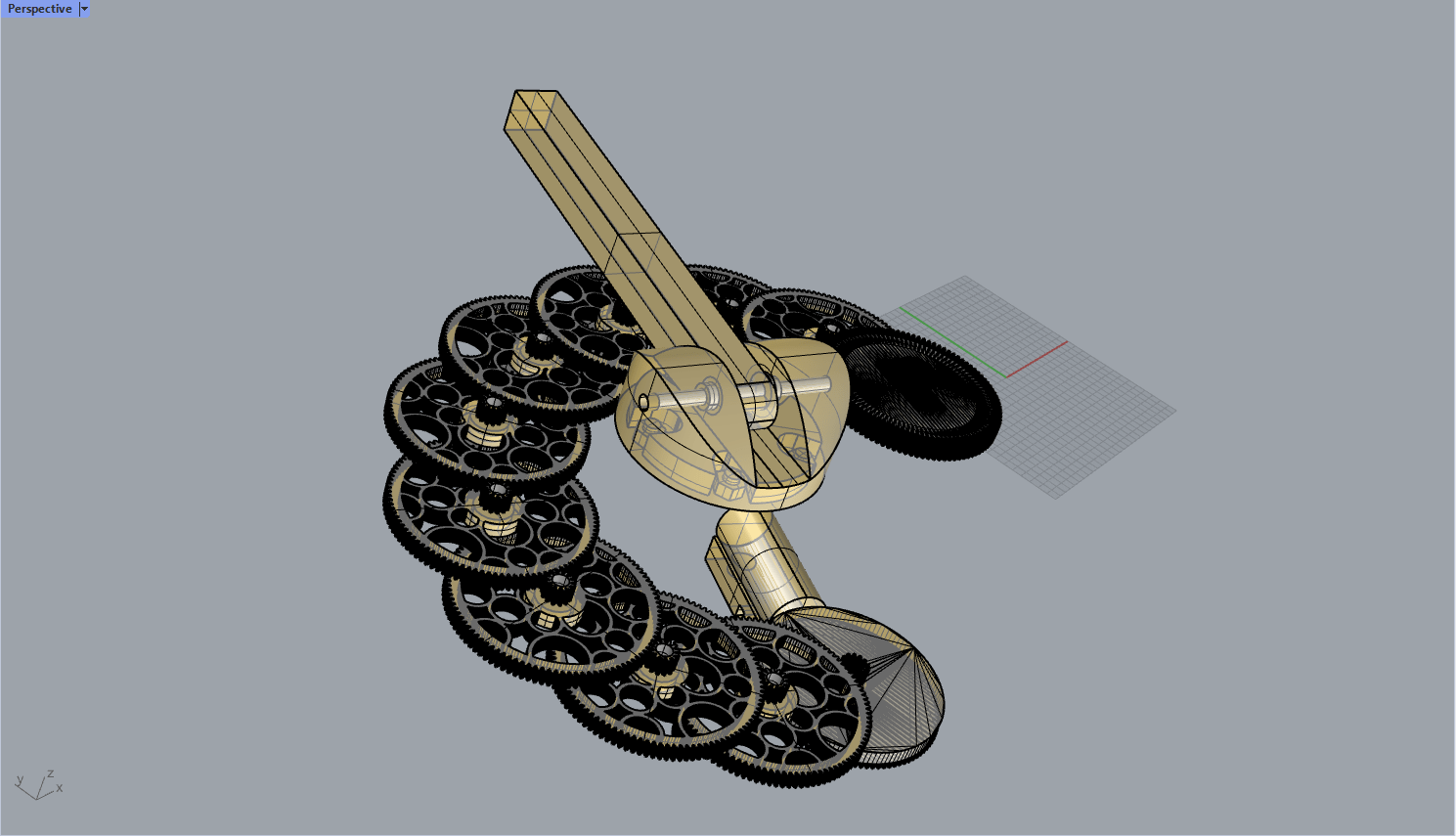

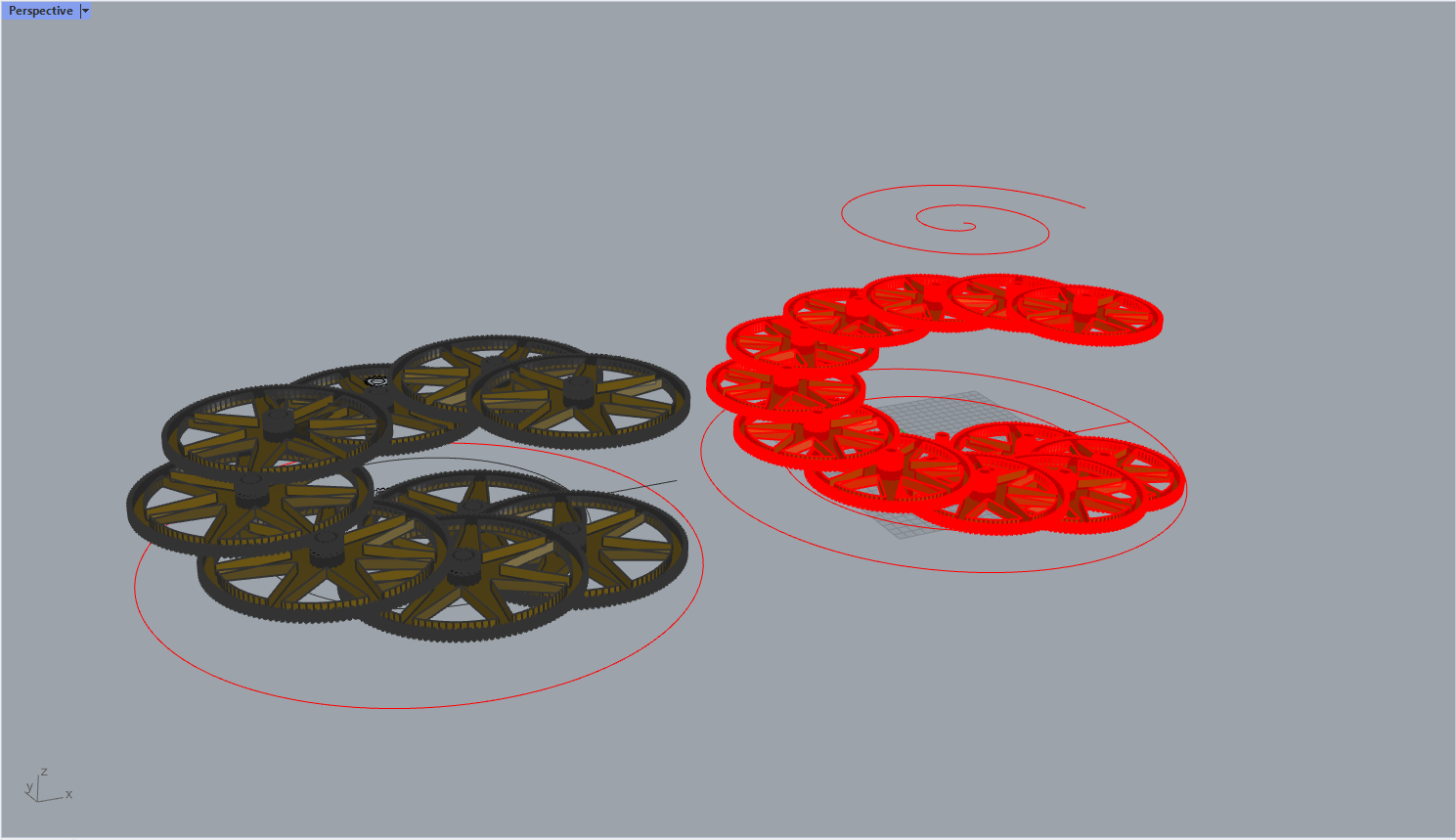

Gear train exploration.
Gear train exploration.
Gear train exploration.
Gear train exploration.
Gear train exploration.
Gear train exploration.
Process of working through the arrangement of the gear train.
Process of working through the arrangement of the gear train.
Process of working through the arrangement of the gear train.
Process of working through the arrangement of the gear train.
Completed gear ramp part which was not used in the final production piece do to an issue with the calibration the printer used to produce the part.
Completed gear ramp part which was not used in the final production piece do to an issue with the calibration the printer used to produce the part.
I also had issues with printing the mold for the concrete base, the printers I had access to were in disrepair forcing me to figure out a different process. I used a cake pan and a laser cut template to drill holes in the mold.
I also had issues with printing the mold for the concrete base, the printers I had access to were in disrepair forcing me to figure out a different process. I used a cake pan and a laser cut template to drill holes in the mold.
Bolts were placed through the holes in order to locate the barrel nuts which would act as the anchoring point for the gear studs.
Bolts were placed through the holes in order to locate the barrel nuts which would act as the anchoring point for the gear studs.
This shows the inside of the cake pan with the barrel nuts fixed in place, the concrete was poured into this to create the base.
This shows the inside of the cake pan with the barrel nuts fixed in place, the concrete was poured into this to create the base.
Concrete freshly poured into mold.
Concrete freshly poured into mold.
Cured concrete with bolts acting as plugs just incase the concrete flowed over the barrel nuts.
Cured concrete with bolts acting as plugs just incase the concrete flowed over the barrel nuts.
One half of the gear ramp, the tolerance on the Z-axis of this printer was off by 10% causing the space for the nut inserts to be too small. The wholes for the gear axels were also undersized to the point that the axel would not fit though.
One half of the gear ramp, the tolerance on the Z-axis of this printer was off by 10% causing the space for the nut inserts to be too small. The wholes for the gear axels were also undersized to the point that the axel would not fit though.
The hole for the axel nut was in-line with the print layers, the pressure of inserting the nut caused the print to fail along the layer lines.
The hole for the axel nut was in-line with the print layers, the pressure of inserting the nut caused the print to fail along the layer lines.
Final assembly of the gear train.
Final assembly of the gear train.
All gears and and central dial mounted.
All gears and and central dial mounted.
Each gear stud had to be cut to length and then fine tuned to make sure the gear meshed properly between the previous and next gear.
Each gear stud had to be cut to length and then fine tuned to make sure the gear meshed properly between the previous and next gear.
SketchTitles-02

Sketch2

Sketch2

This sketch is made of 300 frames taken of the night sky in Wanakena NY. After the sequence of photos were taken I stacked the photos to create the image above. This shows the movement of stars over the course of 6 hours.

SketchTitles-01

Sketch1

For this sketch I removed the movement from a 1945 Waltham mechanical manual wind watch. I filmed at 240 frames per second in order slow down the motion of the individual components in order to see how they interfaced. The first half of the video shows the second hand moving as well as some small movements of the internal components. In the second half of the video you can see the escapement oscillating between its two positions as well as the flywheel rotating back and forth between its start and end positions.

DeathDialV1.8

DeathDial Concept

DeathDial Concept
DeathDial Concept

The DeathDial assumes a 90 year timeline for one’s life. The arm starts in the horizontal position and rotates around a center point at the rate of .5 degrees per hour until it reaches the other horizontal position. At this rate it take 90 hours for the center arm to traverse the 180 degree arc.

Animation showing the movement of the spire over time. The rate at which the spire rotates can be adjusted depending on how I decide to create the movement. I'm looking into creating the motion in one of two ways. The first would be to use a microcontroller, the advantage to this would be the ability top change the time for a full cycle with code. The other way would be to create a set of reduction gears, while this would look very interesting the ability to adjust the output would be increasingly more difficult.
Animation showing the movement of the spire over time. The rate at which the spire rotates can be adjusted depending on how I decide to create the movement. I’m looking into creating the motion in one of two ways. The first would be to use a microcontroller, the advantage to this would be the ability top change the time for a full cycle with code. The other way would be to create a set of reduction gears, while this would look very interesting the ability to adjust the output would be increasingly more difficult.
Back to top
